Type 214, carbon fibre textile, 356 g/m²

Item number: C0034

Carbon fibre fabric, the high-tech reinforcement for concrete. Strong, economical and good quality.

Category: REINFORCEMENT


39,58 €
47,68 € per 1 m2

including 16% VAT , plus shipping

from lin metres Price per unit
25 29,54 € 35,59 € per m²
Available now!

Shipping time: 2 - 3 workdays

lin metres


Due to its extreme tensile strength our SITgrid carbon fibres are the perfect reinforcement where maximum performance is required. Its load carrying capacity is far superior to that of steel and glass fibres. Due to its tear resistance, it offers a higher performance spectrum than glass fibres, yet is priced as attractively. It is used in particularly highly loaded thin-walled components such as concrete furniture as an alternative to traditional steel reinforcement. It is easy to bend, simple to handle, and it does not rust. Use our CONCRETE CALCULATOR and the TEXTILE REINFORCED CONCRETE MANUAL to choose the right quality for you.

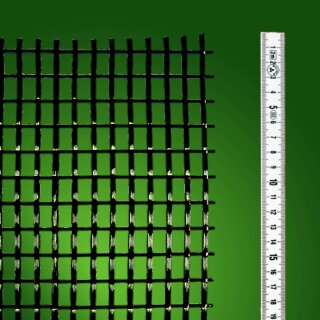

Shown here is type 214 (SITgrid008-125/200-B) with the following material properties:

Material: Carbon Tenax/E STS 40 F13
Grammage: 356 g/m²
Specific density: 1.77 g/cm³
Mesh width lengthwise: 10 mm
Mesh width across: 15 mm
Fibre cross-sectional area lengthwise: 141 mm²/m
Fibre cross-sectional area across: 25 mm²/m
Yarn tensile strength: 4300 N/mm²
Tear resistance lengthwise: 30315 N/5cm
Tear resistance across: 5375 N/5cm

Modulus of elasticity: 250,000 N/mm²

Buy carbon fibres for concrete from renowned manufacturers in our Moertelshop that are not available at your local DIY shop. Order here online and take advantage of our unbeatable cheap shipping.


Shipping weight: 0,35 kg
Product weight: 0,35 kg
